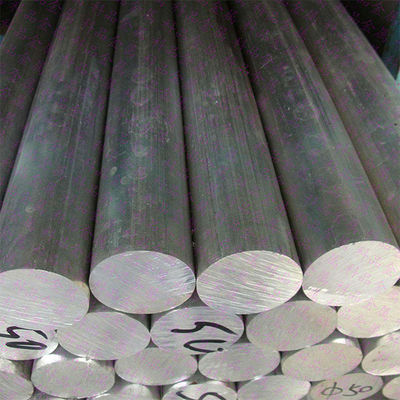

5/16" 1/8" 1/4" 1/2 Solid Aluminum Round Rod 3/8 In. X 48 In. 6061 Extruded
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Aluminum Round Bar | Length | As Customer′s Requirements |
---|---|---|---|
Diameter | 5-200mm | Surface | Polished |
Color | Silver Or As Required | Standard | ASTM AISI JIS DIN GB |
Material | Aluminum Alloy Metal | Surface Treatment | Oxidized |
High Light | 1/4 aluminum round rod,1/8 aluminum round rod,aluminum solid round rod |
Customizable Manufacture Professional Technology 6061 Material Aluminium Bar Extruded Aluminum Round Bar
Aluminium alloys are widely used in automotive engines, particularly in cylinder blocks and crankcases due to the weight savings that are possible. Since aluminium alloys are susceptible to warping at elevated temperatures, the cooling system of such engines is critical. Manufacturing techniques and metallurgical advancements have also been instrumental for the successful application in automotive engines. In the 1960s, the aluminium cylinder heads of the Corvair earned a reputation for failure and stripping of threads, which is not seen in current aluminium cylinder heads.
An important structural limitation of aluminium alloys is their lower fatigue strength compared to steel. In controlled laboratory conditions, steels display a fatigue limit, which is the stress amplitude below which no failures occur – the metal does not continue to weaken with extended stress cycles. Aluminium alloys do not have this lower fatigue limit and will continue to weaken with continued stress cycles. Aluminium alloys are therefore sparsely used in parts that require high fatigue strength in the high cycle regime (more than 107 stress cycles).
1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%)
|
|
Purity | 1050 1050A 1060 1070 1100 |
Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/ |
H26/H36 H18/H28/H38 H114/H194, etc. | |
Specification | Thickness≤30mm; Width≤2600mm; Length≤16000mm OR Coil (C) |
Application | Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc. |
Feature | Lid Shigh conductivity, good corrosion resistant performance, high latent heat |
of melting, high-reflectance, well welding property, low strength, and not | |
suitable for heat treatments. | |
2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element) | |
Alloy | 3003 3004 3005 3102 3105 |
Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/ |
H36 H18/H28/H38 H114/H194, etc. | |
Specification | Thickness≤30mm; Width≤2200mm Length≤12000mm OR Coil (C) |
Application | Decoration, heat-sink device, external walls, storage, sheets for construction, etc. |
Feature | Good rust resistance, not suitable for heat treatments, good corrosion resistant |
performance, well welding property, good plasticity, low strength but suitable | |
for cold working hardening | |
3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element) | |
Alloy | 5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06 |
Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 |
H16/H26/H36 H18/H28/H38 H114/H194, etc. | |
Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile |
Body Sheets, Automobile Inside Board, The Protective Cover On Engine. | |
Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength, |
good corrosion resistant performance, well welding property, well fatigue strength, | |
and suitable for anodic oxidation. | |
4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements ) | |
Alloy | 6061 6063 6082 |
Temper | O F, etc. |
Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
Application | Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components, |
Transport Ship, Semiconductor Equipments, etc | |
Feature | Good corrosion resistant performance, well welding property, good oxidability, |
easy to spray-finishing, well oxidation coloring, good machinability. |
Aluminum Grade | ||
Alloy Series | Typical Alloy | |
1000 Series | 1050 1060 1070 1100 | Pure aluminum |
2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 | Aluminum copper alloy |
3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 | Aluminum manganese alloy |
4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A | Aluminum silicon alloy |
5000 Series | 5052, 5083, 5754, 5005, 5086,5182 | Aluminum magnesium alloy |
6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 | Aluminum magnesium silicon alloy |
7000 Series | 7075, 7A04, 7A09, 7A52, 7A05 | Aluminum magnesium silicon alloy |
8000 Series | 8006 8011 8079 | Aluminum foil alloy |
Before- Sale service:
1. ISO Verified Outstanding Manufacturer
2. The third party inspection: SGS, BV, CE, COC, AI and other.
3. Flexible Payment: T/T, LC, O/A, CAD, DAP, KUNLUN Bank
4. Sufficient Stock
5. Quick Delivery Time, Long time price validity.
6. Tracking picture of transport: Production, Loading and reinforcement loading Pictures
7. Rich experience Professioal Sale Team
After- Sale service:
1. Quality Guarantee after Receiving the Goods:
Offer money return or Ship new products for free if any problems happen
2. Technical Guidance for further Processing
3. VIP Service and Free Order after Accumulated Order Quantity
FAQ
Q1: Are you factory or trading company ?
A: Best quality is our principle all the time. We have 2 times QC one by one.
Our vision: to be world-class professional, reliable and outstanding steel supplier.
Q3: Do you provide samples ? Is it free or extra 2 ?
A: The sample could can provide for customer with free, but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
Q4: What is your MOQ ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP
Large quantity can reduce your cost.
