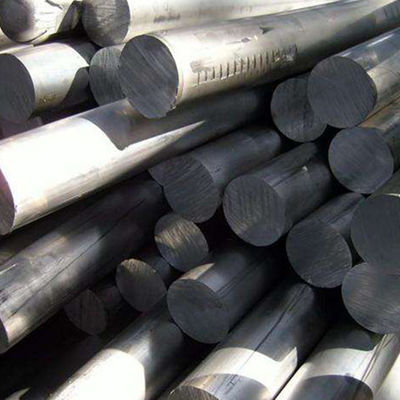

5083 5086 1100 7075 Aluminum Round Bar Suppliers 12mm 15mm 20mm Medical Decoration
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 7075 Aluminum Round Rod | Hardness | 120HB |
---|---|---|---|
Tolerance | ±1% | Length | 1-12m |
Diameter | 2mm~800mm | Color | Silver Or As Required |
Standard | ASTM AISI JIS DIN GB | Grade | 6000 Series |
Packing | As Customer's Requirement | ||
High Light | aluminum 1100 round bar,5086 aluminum round bar,5083 aluminum round bar |
12mm 15mm 20mm Aluminum Alloy Round Bar 6063 6061 Industrial Medical Decoration
1. 1000 series aluminum rods represent 1050, 1060, 1100 series. Among all the series, the 1000 series belongs to the series with the most aluminum content. The purity can reach more than 99.00%. Because it does not contain other technical elements, the production process is relatively simple and the price is relatively cheap. It is the most commonly used series in conventional industries at present. Most of the circulating in the market are 1050 and 1060 series. 1000 series aluminum rods determine the minimum aluminum content of this series according to the last two Arabic numerals. For example, the last two Arabic numerals of 1050 series are 50. According to the international brand naming principle, the aluminum content must reach more than 99.5% to be a qualified product. my country's aluminum alloy technical standard (gB/T3880-2006) also clearly stipulates that the aluminum content of 1050 should reach 99.5%. In the same way, the aluminum content of 1060 series aluminum bars must reach more than 99.6%.
2. 2000 series aluminum alloy represents 2A16 (LY16), 2A02 (LY6). The 2000 series aluminum rods are characterized by high hardness, among which the content of copper is the highest, about 3-5%. The 2000 series aluminum rods belong to aviation aluminum and are not commonly used in conventional industries.
2024 is a typical hard aluminum alloy in the aluminum-copper-magnesium system. It is a heat-treatable alloy with high strength, easy processing, easy turning, and general corrosion resistance.
After heat treatment (T3, T4, T351), the mechanical properties of 2024 aluminum rods are significantly improved. The T3 state parameters are as follows: tensile strength 470MPa, 0.2% yield strength 325MPa, elongation: 10%, fatigue strength 105MPa, hardness 120HB.
Main uses of 2024 aluminum rods: aircraft structures, rivets, truck hubs, propeller components and other structural parts
Item | Factory 6061 6060 6063 Aluminium alloy rod |
Standard | ASTM AISI, SUS, EN, JIS, DIN, GB ASME |
Other Material |
1060, 1050, 1070, 1100, 3003, 3004, 5052,5652, 5154, 5254, 5454, 5083, 5086, 5056,5456, 2024, 2014, 6061, 6063. etc |
Surface | Mill finish,polished,anodizing,brushing,sand blasting,powder coating,etc |
Diameter | 2~800mm |
Length | 1m,2m,3m,5.8m,6m,or as required |
Application |
1. Lighting ,solar reflector plate 2, architectural appearance 4, interior decoration: ceiling, metope, furniture, cabinets and so on 5.elevator ,automotive interior and exterior decoration 6. Interior decoration: such as photo frame 7, household appliances, refrigerator, microwave oven, audio equipment, etc. 8. Aerospace and military aspects, such as China's current large aircraft, the shenzhou spacecraft series, satellite, etc. 9, machinery parts processing, mold manufacturing 10, chemical/insulation pipeline coating |
Payment terms | T/T, L/C, and Western Union |
Price terms | FOB CIF CFR CNF etc |
Package | Export standard package:bundled wooden box or be required; The inner size of container is below: (1)20footGP:5.8m(length)x2.13m(width)x2.18m(high)about24-26 CBM (2)40footGP:11.8m(length)x2.13m(width)x2.72m(high)about68 CBM |
Delivery time | Normally according to the order quantity. |
Contact | If you have any question free to contact me |
1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%)
|
|
Purity | 1050 1050A 1060 1070 1100 |
Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/ |
H26/H36 H18/H28/H38 H114/H194, etc. | |
Specification | Thickness≤30mm; Width≤2600mm; Length≤16000mm OR Coil (C) |
Application | Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc. |
Feature | Lid Shigh conductivity, good corrosion resistant performance, high latent heat |
of melting, high-reflectance, well welding property, low strength, and not | |
suitable for heat treatments. | |
2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element) | |
Alloy | 3003 3004 3005 3102 3105 |
Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/ |
H36 H18/H28/H38 H114/H194, etc. | |
Specification | Thickness≤30mm; Width≤2200mm Length≤12000mm OR Coil (C) |
Application | Decoration, heat-sink device, external walls, storage, sheets for construction, etc. |
Feature | Good rust resistance, not suitable for heat treatments, good corrosion resistant |
performance, well welding property, good plasticity, low strength but suitable | |
for cold working hardening | |
3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element) | |
Alloy | 5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06 |
Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 |
H16/H26/H36 H18/H28/H38 H114/H194, etc. | |
Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile |
Body Sheets, Automobile Inside Board, The Protective Cover On Engine. | |
Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength, |
good corrosion resistant performance, well welding property, well fatigue strength, | |
and suitable for anodic oxidation. | |
4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements ) | |
Alloy | 6061 6063 6082 |
Temper | O F, etc. |
Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
Application | Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components, |
Transport Ship, Semiconductor Equipments, etc | |
Feature | Good corrosion resistant performance, well welding property, good oxidability, |
easy to spray-finishing, well oxidation coloring, good machinability. |
Aluminum Grade | ||
Alloy Series | Typical Alloy | |
1000 Series | 1050 1060 1070 1100 | Pure aluminum |
2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 | Aluminum copper alloy |
3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 | Aluminum manganese alloy |
4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A | Aluminum silicon alloy |
5000 Series | 5052, 5083, 5754, 5005, 5086,5182 | Aluminum magnesium alloy |
6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 | Aluminum magnesium silicon alloy |
7000 Series | 7075, 7A04, 7A09, 7A52, 7A05 | Aluminum magnesium silicon alloy |
8000 Series | 8006 8011 8079 | Aluminum foil alloy |
